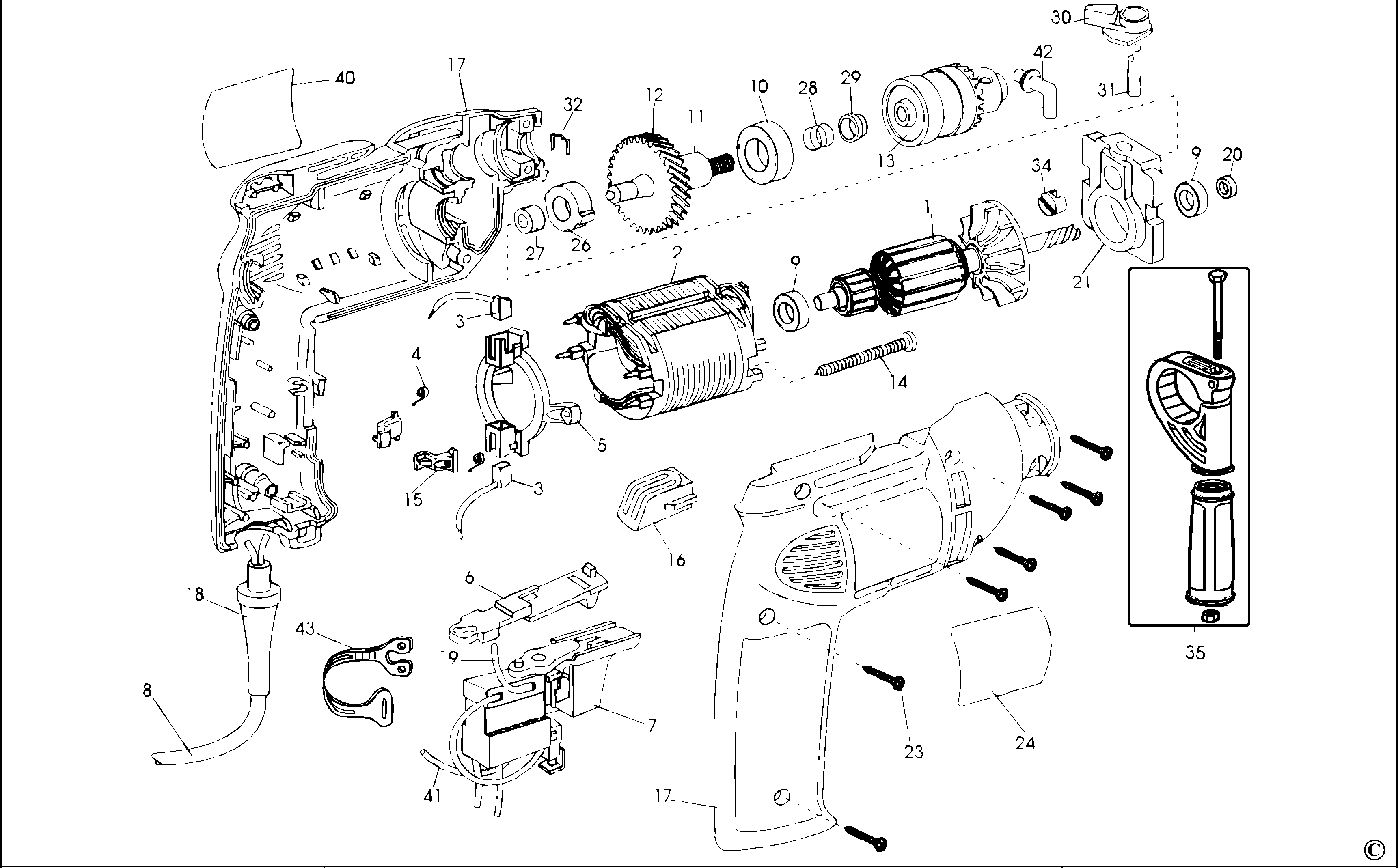

DW507 DRILL Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 185120-00 | 1 | ARMATURE | B5 |  |
||
| 2 | 185119-00 | 1 | FIELD | B5 | |
||
| 3 | 146475-10 | 1 | BRUSH | B5 | |
||
| 4 | 149425-00 | 2 | BRUSH SPRING | B5 | |
||
| 5 | 148325-01 | 1 | BRUSH HOLDER | B5 | |
||
| 6 | 393483-00 | 1 | LEVER | B5 | |
||
| 7 | 187408-01 | 1 | SWITCH KIT 220V | B5 | |
||
| 8 | 185081-02 | 1 | CORD | B5 | |
||
| 9 | 605040-06 | 1 | BEARING,BALL | B5 | |
||
| 10 | 605040-23 | 1 | BEARING | B5 |  |
||
| 11 | 151261-00 | 1 | SPINDLE | B5 | |
||
| 12 | 000000-00 | 1 | NO LONGER AVAILABLE | B5 | |||
| 13 | 584925-02 | 1 | CHUCK 13MM | B5 | |
||
| 14 | 330019-25 | 2 | SCREW | B5 | |
||
| 15 | 151252-00 | 2 | NUT | B5 | |
||
| 16 | 151036-01 | 1 | VENT | AIR | B5 | |
|
| 17 | 185512-00 | 1 | CLAMSHELL SA | B5 | |
||
| 18 | N542553 | 1 | CORD PROTECTOR | B5 | |
||
| 18 | N542553 | 1 | CORD PROTECTOR | B5 | |
||
| 19 | 000000-00 | 1 | NO LONGER AVAILABLE | B5 | |||
| 20 | 464292-00 | 1 | DEFLECTOR | B5 | |
||
| 21 | 153147-01 | 1 | BEARING BLOCK | B5 | |
||
| 23 | 330019-13 | 7 | SCREW | M4X19 T20 | B5 | |
|
| 24 | 000000-00 | 1 | NO LONGER AVAILABLE | B5 | |||
| 26 | 153148-00 | 1 | CLUTCH | B5 | |
||
| 27 | 50574-00 | 1 | BEARING,NEEDLE | B5 | |
||
| 28 | 086134-00 | 1 | SPRING | B5 | |
||
| 29 | 66683-00 | 1 | SEAL | B5 | |
||
| 30 | 151254-00 | 1 | KNOB | B5 | |
||
| 31 | 151255-00 | 1 | PIN | B5 | |||
| 32 | 151256-00 | 1 | SPRING | B5 | |
||
| 34 | 151257-00 | 1 | CAP | B5 | |
||
| 35 | 185559-00 | 1 | SIDE HANDLE | B5 | |
||
| 40 | 395047-00 | 1 | BRAND LABEL | B5 | |
||
| 41 | 143961-00 | 1 | LEADWIRE | NLS | B5 | |
|
| 42 | 183492-00 | 1 | CHUCK KEY | B5 | |
||
| 43 | 65288-02 | 1 | HOLDER | B5 |
