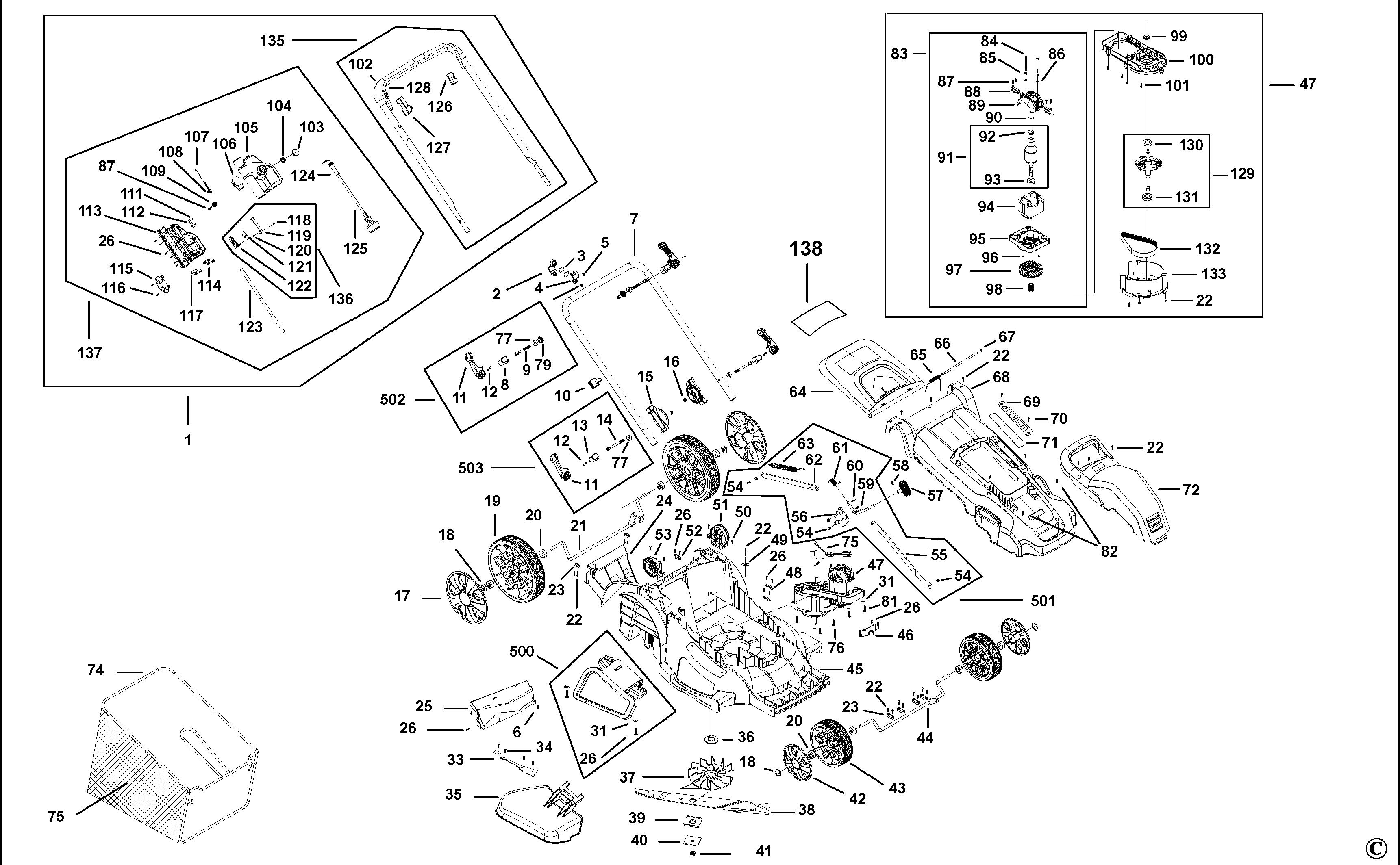

LM2000 CORTA CESPED S/C Type 1 | Dibujos
Documentos
Listado de Piezas
Vea el menú desplegable pues algunos productos pueden tener varios dibujos
Save PDF
Ver página completa
| Item No. | Product Number | Qty Per | Product Description | Otra descrip. | Other Info | Mercados | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004728-73 | 1 | MANIVELA SA | QS |  |
||
| 2 | 1004705-83 | 1 | TAPA/CUBREJUNTA | QS | |
||
| 3 | 1004705-84 | 2 | EMPAQUETADURA | QS | |
||
| 4 | 1004705-85 | 1 | TAPA/CUBREJUNTA | QS | |
||
| 5 | 1004728-88 | 1 | TORNILLO | QS | |
||
| 6 | 1004707-03 | 4 | TORNILLO | QS | |
||
| 7 | 1004728-77 | 1 | MANIVELA INFERIOR | QS | |
||
| 8 | 1004705-89 | 2 | ASIENTO | QS | |
||
| 9 | 1004705-91 | 2 | VARILLA ACOPLAMIENTO | QS | |
||
| 10 | 1004705-95 | 1 | GUIA CABLE | QS | |
||
| 11 | 1004729-66 | 4 | BOLSA DEL FIJADOR | QS | |
||
| 12 | 1004705-88 | 4 | PASADOR | QS | |
||
| 13 | 1004705-98 | 2 | ASIENTO | CLAMP | QS | |
|
| 14 | 1004706-00 | 1 | VARILLA ACOPLAMIENTO | QS | |
||
| 15 | 1004706-01 | 2 | REGULADOR | QS | |
||
| 16 | 1004695-01 | 4 | TUERCA | QS | |
||
| 17 | 1004706-02 | 2 | TAPA/CUBREJUNTA | WHEEL - REAR | QS | |
|
| 18 | 1004706-03 | 4 | MODERADOR | QS |  |
||
| 19 | 1004706-05 | 2 | RUEDA TRASERA | QS | |
||
| 20 | 1004706-04 | 8 | COLLARIN | QS | |
||
| 21 | 1004706-06 | 1 | EJE POSTERIOR | QS | |
||
| 22 | 1004728-89 | 23 | TORNILLO | QS | |
||
| 23 | 1004706-07 | 2 | PLACA DE CONTENCION | QS | |
||
| 24 | 1004706-10 | 1 | SEPARADOR | QS | |
||
| 25 | 1004706-18 | 1 | GUIA | QS | |
||
| 26 | 1004707-27 | 17 | TORNILLO | QS | |
||
| 31 | 1004706-12 | 2 | ARANDELA | QS | |
||
| 33 | 1004706-78 | 1 | PLACA | QS | |
||
| 34 | 1004728-25 | 4 | TORNILLO | QS | |
||
| 35 | 1004728-34 | 1 | EXPULSION LATERAL | QS | |
||
| 36 | 1004729-11 | 1 | MANGA/CAMISA | MOTOR SHAFT | QS | |
|
| 37 | 1004728-97 | 1 | ENVTILADOR | QS | |
||
| 38 | 1004706-29 | 1 | CUCHILLA | QS | |
||
| 39 | 1004728-98 | 1 | TABLERO | PRESS | QS | |
|
| 40 | 1004729-12 | 1 | TAPA/CUBREJUNTA | QS | |
||
| 41 | 1004729-13 | 1 | TUERCA | COVER | QS | |
|
| 42 | 1004706-32 | 2 | TAPA/CUBREJUNTA | WHEEL | QS | |
|
| 43 | 1004706-33 | 2 | RUEDA DELANTERA | QS | |
||
| 44 | 1004706-34 | 1 | EJE DELANTERO | QS | |
||
| 45 | 1004728-80 | 1 | CHASIS | QS | |
||
| 46 | 1004729-00 | 1 | PANTALLA | QS | |
||
| 47 | 1004728-91 | 1 | MOTOR SA | QS | |
||
| 48 | 1004706-38 | 1 | PLACA DE CONTENCION | QS | |
||
| 49 | 1004706-64 | 1 | ARANDELA | QS | |
||
| 50 | 1004728-28 | 4 | TORNILLO | QS | |
||
| 51 | 1004706-13 | 1 | ENGRANAJE | LEFT | QS | |
|
| 52 | 1004728-94 | 1 | ABRAZADERA | QS | |
||
| 53 | 1004706-11 | 1 | ENGRANAJE | RIGHT | QS | |
|
| 54 | 1004706-57 | 8 | TUERCA | QS | |
||
| 55 | 1004728-95 | 1 | VARILLA ACOPLAMIENTO | FRONT | QS | |
|
| 56 | 1004706-58 | 1 | CHAPA DE MONTAJE | QS | |
||
| 57 | 1004706-66 | 1 | MANIVELA DE ELEVAC. | QS | |
||
| 58 | 1004706-65 | 1 | TORNILLO | QS | |
||
| 59 | 1004706-59 | 1 | ENLACE | QS | |
||
| 60 | 1004706-61 | 1 | COTTER PIN | QS | |
||
| 61 | 1004706-60 | 1 | TORSION DEL MUELLE | QS | |
||
| 62 | 1004729-02 | 1 | VARILLA ACOPLAMIENTO | QS | |
||
| 63 | 1004706-63 | 1 | TORSION DEL MUELLE | QS | |
||
| 64 | 1004728-81 | 1 | PALETA DE HIERBA | QS | |
||
| 65 | 1004706-83 | 1 | TORSION DEL MUELLE | QS | |
||
| 66 | 1004728-51 | 1 | EJE | QS | |
||
| 67 | 1004706-74 | 2 | GRAPA CIRCULAR | QS | |
||
| 68 | 1004729-19 | 1 | MONTANTE SUPERIOR | QS | |
||
| 69 | 1004706-54 | 1 | PLACA REGUL | QS | |
||
| 70 | 1004706-55 | 2 | TORNILLO | QS | |
||
| 71 | 1004706-53 | 1 | MANGA/CAMISA | QS | |
||
| 72 | 1004729-03 | 1 | TAPA/CUBREJUNTA | QS | |
||
| 73 | 1004728-09 | 1 | SACO DE HIERBA | QS | |
||
| 74 | 1004705-97 | 1 | BASTIDOR | QS | |
||
| 75 | 1004728-84 | 1 | BATERIA CONECTOR | QS | |
||
| 76 | 1004729-14 | 3 | TORNILLO | QS | |
||
| 77 | 1004729-04 | 4 | ADAPTADOR/AMORTIGU. | QS | |
||
| 79 | 1004707-39 | 2 | MANIVELA SA | QS | |
||
| 81 | 1004729-18 | 2 | TORNILLO | QS | |
||
| 82 | 1004728-62 | 2 | TORNILLO | QS | |
||
| 83 | 1004728-90 | 1 | MOTOR | QS | |
||
| 84 | 1004729-51 | 2 | TORNILLO | QS | |
||
| 85 | 1004729-52 | 2 | ARANDELA ELASTICA | QS | |
||
| 86 | 1004729-53 | 1 | EMPAQUETADURA | QS | |
||
| 87 | 1004728-85 | 5 | TORNILLO | QS | |
||
| 88 | 1004729-05 | 1 | PAR DE ESCOBILLA | QS | |
||
| 89 | 1004729-54 | 1 | SOPORTE | QS | |
||
| 90 | 1004729-50 | 1 | ARANDELA ELASTICA | QS | |
||
| 91 | 1004729-30 | 1 | INDUCIDO SA | QS | |
||
| 92 | 1004729-48 | 1 | COJINETE | QS | |
||
| 93 | 1004729-49 | 1 | COJINETE | QS | |
||
| 94 | 1004729-01 | 1 | CAMPO | QS | |
||
| 95 | 1004729-55 | 1 | TAPA/CUBREJUNTA | QS | |
||
| 96 | 1004729-56 | 2 | TUERCA | QS | |
||
| 97 | 1004730-16 | 1 | ENVTILADOR | QS | |
||
| 98 | 1004729-47 | 1 | RUEDA | BELT | QS | |
|
| 99 | 1004729-57 | 1 | COJINETE | QS | |
||
| 100 | 1004729-58 | 1 | BASTIDOR | QS | |
||
| 101 | 1004729-59 | 4 | TORNILLO | QS | |
||
| 102 | 1004705-56 | 1 | ESPUMA | QS | |
||
| 103 | 1004705-58 | 1 | BOTON | QS | |
||
| 104 | 1004705-59 | 1 | MUELLE | QS | |
||
| 105 | 1004728-75 | 1 | TAPA DEL CONMUTADOR | UPPER | QS | |
|
| 106 | 1004728-76 | 1 | CONMUTADOR | QS | |
||
| 107 | 1004729-38 | 1 | CABLE | QS | |
||
| 108 | 1004729-36 | 1 | GANCHO | QS | |
||
| 109 | 1004705-64 | 1 | PLACA INFERIOR | QS | |
||
| 111 | 5170016-95 | 2 | PERNO | QS | |
||
| 112 | 1004705-75 | 1 | GUIA | QS | |
||
| 113 | 1004728-82 | 1 | TAPA DEL CONMUTADOR | LOWER | QS | |
|
| 115 | 1004728-83 | 1 | PATIN DE LA CRUCET | CORD | QS | |
|
| 116 | 1004728-86 | 2 | TORNILLO | QS | |
||
| 117 | 1004705-79 | 1 | ABRAZADERA DE CABLE | QS | |
||
| 118 | 1004694-84 | 1 | TORNILLO | QS | |
||
| 119 | 1004694-83 | 1 | PORTAMANDRIN | QS | |
||
| 120 | 1004694-87 | 1 | TUERCA | QS | |
||
| 121 | 1004694-85 | 1 | TORSION DEL MUELLE | QS | |
||
| 122 | 1004729-37 | 1 | GUIA | QS | |
||
| 123 | 1004729-10 | 1 | CABLE | QS | |
||
| 124 | 1004728-87 | 1 | CORDON PROTECTOR | QS | |
||
| 125 | 1004729-06 | 1 | CORDON DE SUJECION | QS | |
||
| 126 | 1004729-07 | 1 | CAMISA DE AISLAMIEN. | QS | |
||
| 127 | 1004729-08 | 1 | SOPORTE | QS | |
||
| 128 | 1004729-09 | 1 | BARRA | SWITCH | QS | |
|
| 129 | 1004729-64 | 1 | FRENO SA(SUBMONTAJE) | QS | |
||
| 130 | 1004729-60 | 1 | COJINETE | QS | |
||
| 131 | 1004729-61 | 1 | COJINETE | QS | |
||
| 132 | 1004728-92 | 1 | CORREA | QS | |
||
| 133 | 1004729-62 | 1 | PLACA DE FONDO | QS | |
||
| 134 | 1004728-89 | 3 | TORNILLO | QS | |
||
| 135 | 1004729-35 | 1 | MANIVELA SA | QS | |
||
| 136 | 1004729-32 | 1 | CERRO.DE BLOQU.EN ON | QS | |
||
| 137 | 1004729-63 | 1 | SWITCHBOX SA | QS | |
||
| 138 | 1004730-01 | 1 | PLACA SIGNALETICA | QS | |
||
| 500 | 1004729-28 | 1 | SALIDA/DESCARGA | QS | |
||
| 501 | 1004729-29 | 1 | ALTURA DEL REGULADOR | QS | |
||
| 502 | 1004729-33 | 1 | ABRAZADERA SA | QS | |
||
| 503 | 1004729-34 | 1 | ABRAZADERA SA | QS | |
