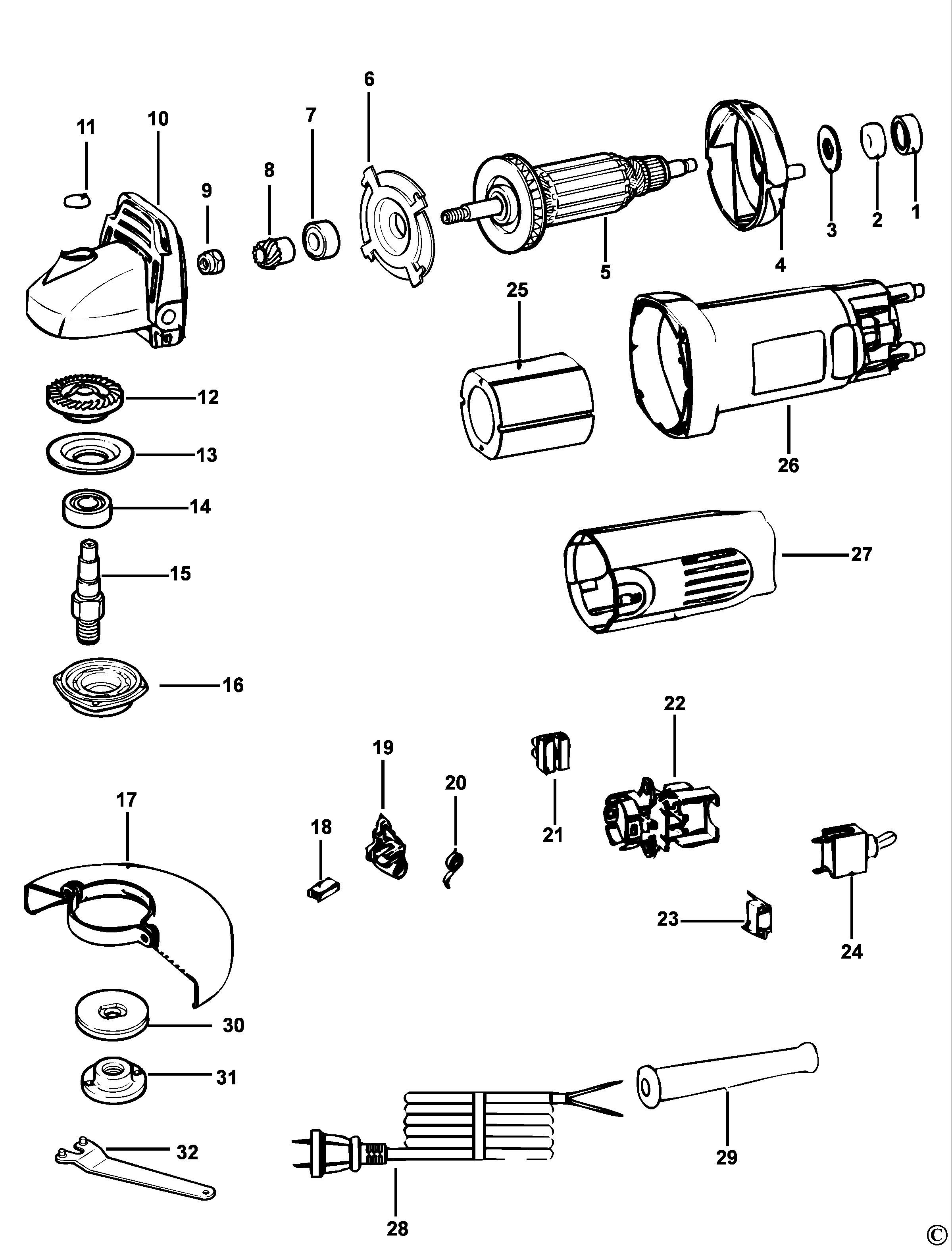

DW800 ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 641823-00 | 1 | SLEEVE | B1 |  |
||
| 2 | 605040-02 | 1 | BEARING | B1 | |
||
| 3 | 619327-00 | 1 | INSULATOR | B1 |  |
||
| 4 | 569823-00 | 1 | BAFFLE FAN | B1 | |
||
| 5 | 622829-00 | 1 | ARMATURE SA | B1 | |
||
| 6 | 619326-00 | 1 | FLANGE | B1 | |
||
| 7 | 390821-01 | 1 | BEARING | 8 MM | B1 | ||
| 8 | 402340-01 | 1 | PINION | 12T | B1 | |
|
| 9 | 945292-00 | 1 | NUT | B1 | |
||
| 10 | 569599-00 | 1 | GEARCASE | B1 | |
||
| 11 | 944575-00 | 1 | BUTTON | B1 | |
||
| 12 | 402339-00 | 1 | GEAR | 37T | B1 | |
|
| 13 | 945299-00 | 1 | FLANGE | B1 | |
||
| 14 | 605040-22 | 1 | BEARING | B1 | |
||
| 15 | N039248 | 1 | SPINDLE | M10 | B1 | |
|
| 16 | 562185-01 | 1 | GEARCASE COVER | B1 | |
||
| 16 | 000000-00 | 1 | NO LONGER AVAILABLE | B1 | |||
| 17 | 562197-00 | 1 | GUARD SA | B1 | |
||
| 18 | N035678 | 1 | BRUSH PAIR 230V | B1 | |||
| 18 | N035678 | 1 | BRUSH PAIR 230V | B1 | |||
| 19 | 619321-00 | 2 | BRUSH HOLDER SA | B1 | |
||
| 20 | 619985-00 | 2 | SPRING | B1 | |||
| 21 | 320078-00 | 1 | TERMINAL BLOCK | B1 | |
||
| 22 | 619325-00 | 1 | SUPPORT | SWITCH | B1 | |
|
| 23 | 623070-00 | 1 | CAPACITOR SA | B1 | |||
| 24 | 619324-00 | 1 | SWITCH | B1 | |
||
| 25 | 603821-02 | 1 | FIELD SA | B1 | |
||
| 26 | 619319-00 | 1 | FIELDCASE | B1 | |
||
| 27 | 619320-00 | 1 | HANDLE | B1 | |
||
| 28 | 623292-03 | 1 | CORDSET | B1 | |||
| 28 | 562226-50 | 1 | CORDSET | B1 | |
||
| 29 | 330005-01 | 1 | CORD PROTECTOR | B1 | |
||
| 30 | 635488-00 | 1 | INNER FLANGE | B1 | |
||
| 30 | N039245 | 1 | INNER FLANGE | M10 | B1 | |
|
| 31 | 635489-00 | 1 | OUTER FLANGE | M10 | B1 | |
|
| 31 | 622208-00 | 1 | OUTER FLANGE | B1 | |
||
| 32 | 401253-00 | 1 | WRENCH ROUND-PINS | B1 | |
||
| 33 | 627647-00 | 2 | SCREW | SWITCH | B1 | |
