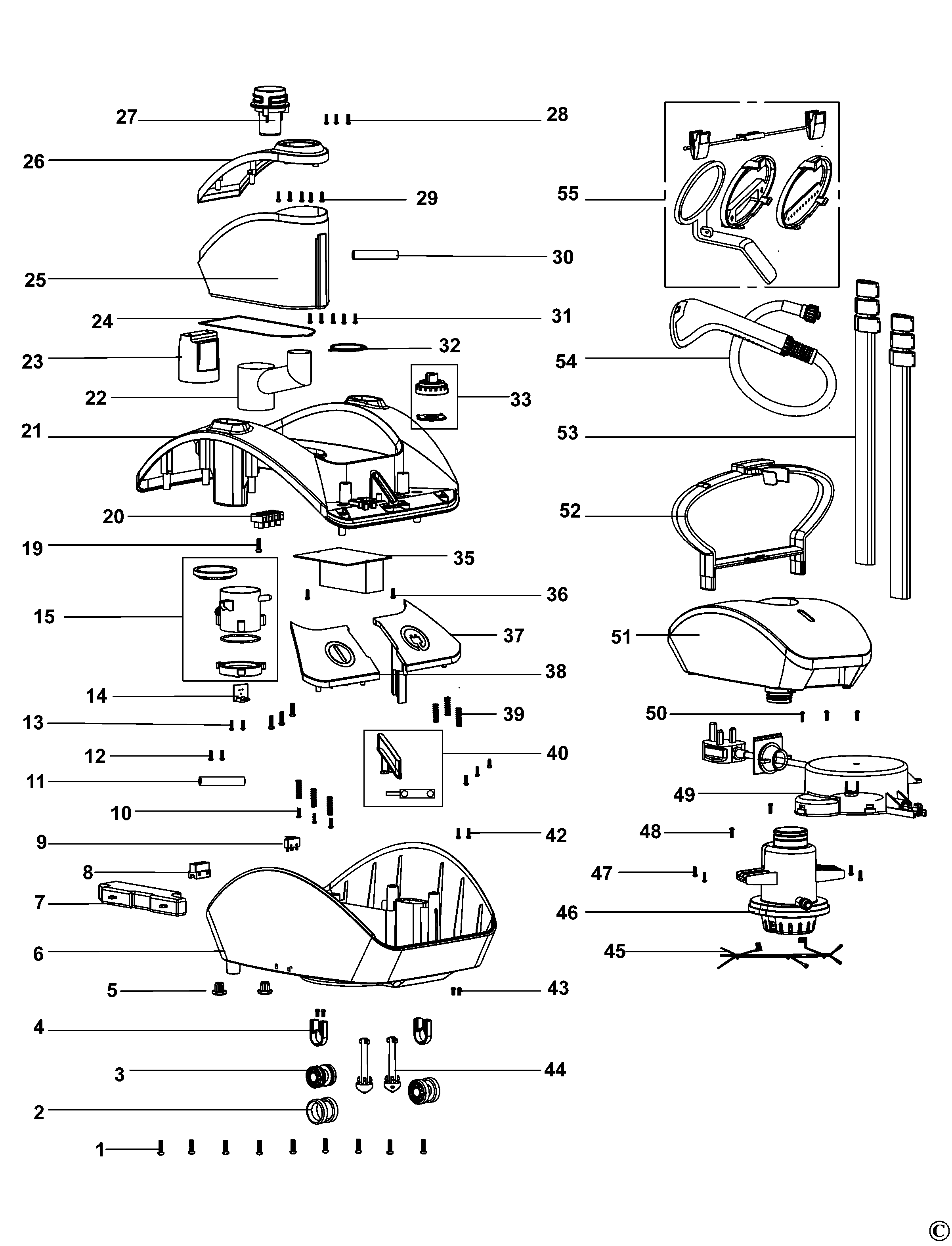

GST2000 CUISO VAPEUR Type 1 | Plans
Documents
Liste des pièces
Consultez le menu déroulant car certains produits disposent de plusieurs plans
Impression
Vue pleine page
| Item No. | Product Number | Qty Per | Product Description | Desig compl | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 5170027-94 | 8 | VIS | B1 | |||
| 2 | 5170027-95 | 2 | ROUE | B1 | |||
| 3 | 5170027-96 | 2 | ROUE | B1 | |||
| 4 | 5170027-97 | 2 | SUPPORT | B1 | |||
| 5 | 5170027-98 | 2 | PATIN | foot pad | B1 | ||
| 6 | 5170027-99 | 1 | BASE | B1 | |||
| 7 | 5170028-00 | 1 | POIDS | B1 | |||
| 8 | 5170028-01 | 1 | BASE | switch base | B1 | ||
| 9 | 5170028-02 | 1 | MICRORUPTEUR | B1 | |||
| 10 | 5170028-03 | 6 | VIS | B1 | |||
| 11 | 5170028-04 | 1 | TUBE | B1 | |||
| 12 | 5170028-05 | 2 | VIS | B1 | |||
| 13 | 5170028-06 | 2 | VIS | B1 | |||
| 14 | 5170028-07 | 1 | S/E REDRESSEUR | B1 | |||
| 15 | 5170028-08 | 1 | RESERVOIR | B1 | |||
| 19 | 5170028-12 | 4 | VIS | B1 | |||
| 20 | 5170028-13 | 1 | BORNE | B1 | |||
| 21 | 5170028-14 | 1 | COUVERCLE SUPERIEUR | B1 | |||
| 22 | 5170028-15 | 1 | TUBE SILICONE | B1 | |||
| 23 | 5170028-16 | 1 | TABLE FIXE | B1 | |||
| 24 | 5170028-17 | 1 | ANNEAU | B1 | |||
| 25 | 5170028-18 | 1 | BLOC FIXE | B1 | |||
| 26 | 5170028-19 | 1 | COUVERCLE | B1 | |||
| 27 | 5170028-20 | 1 | SORTIE | B1 | |||
| 28 | 5170028-21 | 3 | VIS | B1 | |||
| 29 | 5170028-22 | 3 | VIS | B1 | |||
| 30 | 5170028-23 | 1 | ENTREE | B1 | |||
| 31 | 5170028-24 | 3 | VIS | B1 | |||
| 32 | 5170028-25 | 1 | ATTACHE | B1 | |||
| 33 | 5170028-26 | 1 | BOITIER | B1 | |||
| 35 | 5170028-28 | 1 | CARTE CIRCUIT IMPRIME | B1 | |||
| 36 | 5170028-29 | 2 | VIS | B1 | |||
| 37 | 5170028-30 | 1 | INTERRUPTEUR | B1 | |||
| 38 | 5170028-31 | 1 | INTERRUPTEUR | B1 | |||
| 39 | 5170028-32 | 6 | RESSORT | B1 | |||
| 40 | 5170028-33 | 1 | LAMPE | B1 | |||
| 42 | 5170028-35 | 2 | VIS | B1 | |||
| 43 | 5170028-36 | 2 | VIS | B1 | |||
| 44 | 5170028-37 | 2 | BLOC FIXE | B1 | |||
| 45 | 5170028-38 | 1 | FIL | B1 | |||
| 46 | 5170028-39 | 1 | S/E CHAUDIERE | B1 | |||
| 47 | 5170028-40 | 4 | VIS | B1 | |||
| 48 | 5170028-41 | 3 | VIS | B1 | |||
| 49 | 5170028-42 | 1 | JEU DE CORDONS | B1 | |||
| 50 | 5170028-43 | 4 | VIS | B1 | |||
| 51 | 5170028-44 | 1 | RESERVOIR | B1 | |||
| 52 | 5170028-45 | 2 | S/E RACK | B1 | |||
| 53 | 5170028-46 | 1 | S/E TIGE | B1 | |||
| 54 | 5170028-47 | 1 | BALAI | B1 | |||
| 55 | 5170028-48 | 1 | KIT D'ACCESSOIRES | B1 |
