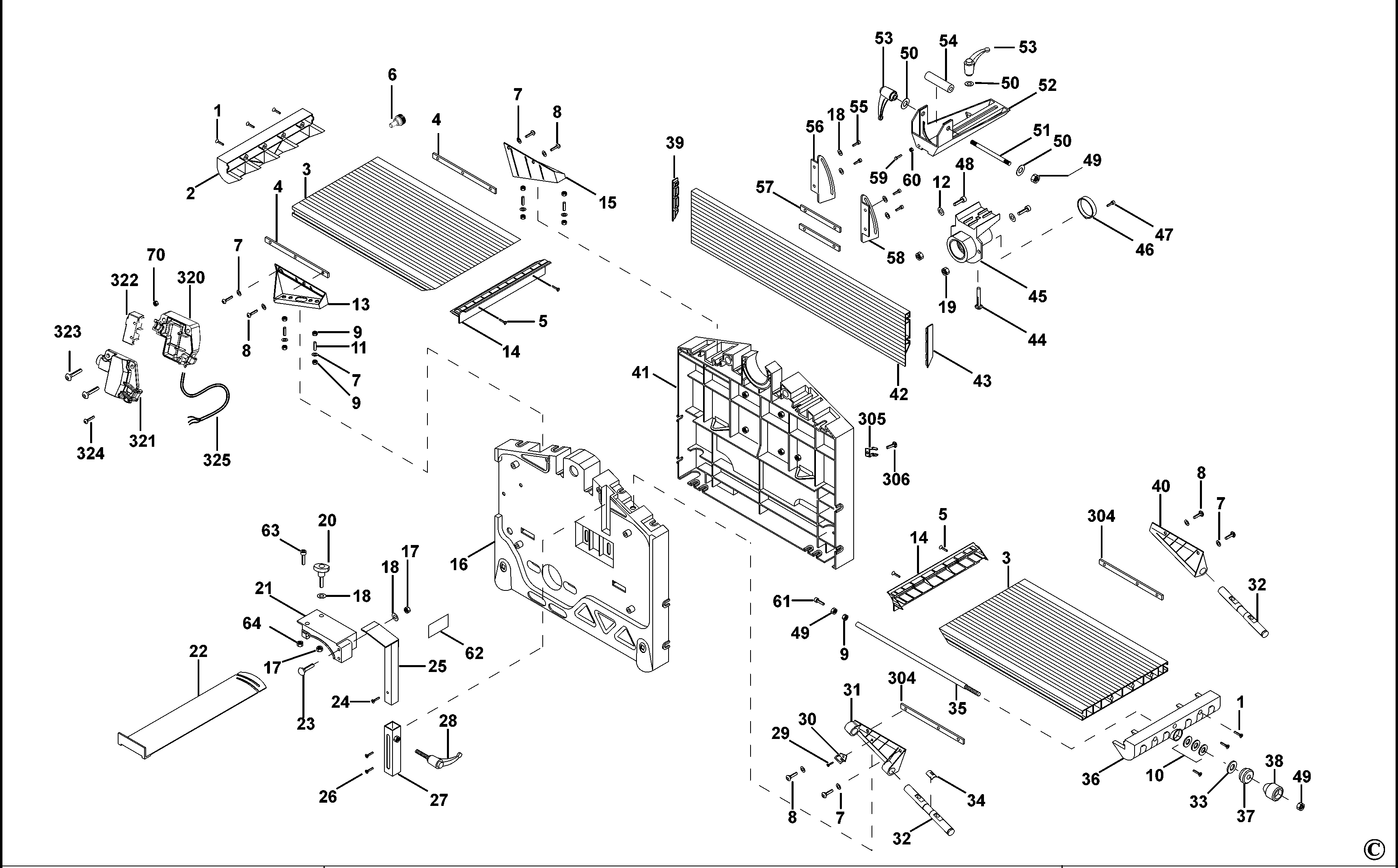

D27300 PIALLA A SPESSORE Type 2 | Disegni

Documenti

Elenco Ricambi

Si prega di visualizzare il menu a tendina dal momento che alcuni prodotti potrebbero avere più disegni

Stampabile

Visualizza Pagina intera

Item No.	Product Number	Qty Per	Product Description	INFORMAZIONI	Altre informazioni	Markets
1	860084-07	6	VITE	3.2 x 32		XS
2	868852-01	1	COPERTURA			XS
3	868850-00	2	TAVOLO			XS
4	N078778	2	PIASTRA			XS
5	860428-07	4	VITE	3.2 x 32		XS
6	N079513	1	MANOPOLA			XS
7	860074-03	12	RONDELLA			XS
8	868883-00	8	SCREW.SPECIAL	M8 x 12 Torx		XS
9	860083-04	10	DADO			XS
10	861475-00	2	CUSCINETTO			XS
11	760242-00	4	VITE			XS
12	860074-02	2	RONDELLA			XS
13	868859-00	1	SUPPORTO			XS
14	868851-02	1	COPERTURA			XS
15	868860-00	1	SUPPORTO			XS
16	868816-00	1	TELAIO SINISTRO			XS
17	860092-00	2	DADO			XS
18	720959-00	6	RONDELLA			XS
19	860083-03	2	DADO			XS
20	942895-06	1	MANOPOLA	M6 x 32		XS
21	865910-00	1	SUPPORTO			XS
22	865909-00	1	PROTEZIONE			XS
23	860301-13	1	VITE			XS
24	860205-04	1	VITE			XS
25	868843-01	1	STAFFA			XS
26	860205-07	2	VITE	M6 x 15		XS
27	868842-00	1	TUBO			XS
28	861841-03	1	LEVA			XS
29	860094-02	1	VITE			XS
30	868874-00	1	INDICE			XS
31	868854-00	1	SUPPORTO			XS
32	868856-00	2	GUIDA			XS
33	860658-01	1	RONDELLA			XS
34	868873-00	1	SCALA			XS
35	868857-00	1	BARRA			XS
36	868852-00	1	COPERTURA			XS
37	868885-00	1	DADO	RING		XS
38	868858-00	1	MANOPOLA			XS
39	868876-01	1	COPERTURA			XS
40	868853-00	1	SUPPORTO			XS
41	868811-01	1	TELAIO DESTRO			XS
42	868849-00	1	GUIDA			XS
43	868876-00	1	COPERTURA			XS
44	860301-01	1	VITE			XS
45	868841-00	1	FLANGIA			XS
46	868887-00	1	COPERTURA			XS
47	860094-03	1	VITE			XS
48	860093-11	2	VITE			XS
49	860092-01	3	DADO			XS
50	941602-00	3	RONDELLA			XS
51	868846-00	1	ALBERO			XS
52	868844-00	1	GUIDA DI SCORRIMENTO			XS
53	861840-03	2	LEVA			XS
54	868847-00	1	DISTANZIALE			XS
55	760219-00	4	VITE			XS
56	868845-01	1	SQUADRA			XS
57	868848-00	2	PIASTRA			XS
58	868845-00	1	1BLOCK			XS
59	860085-09	1	SCREW.TEMP			XS
60	860083-12	2	NUT M6			XS
61	868910-00	1	VITE			XS
62	868882-00	1	ETICHETTA			XS
63	860093-08	1	VITE			XS
64	860092-03	1	NUT M5			XS
65	N078792	1	SCHIUMA			XS
66	N050442	1	SCHEDA	XS		XS
67	868822-00	2	BARRA			XS
68	868862-01	1	COPERTURA			XS
69	860094-06	4	VITE			XS
70	860083-14	5	DADO			XS
71	860078-02	4	RONDELLA			XS
72	941614-00	4	PIEDE			XS
73	860073-03	14	WASHER M8			XS
74	949886-16	8	VITE			XS
75	861073-00	4	PIEDE			XS
76	868864-00	4	GAMBA			XS
77	941756-00	4	MANOPOLA			XS
78	860301-18	4	VITE	M8 x 45		XS
79	860085-29	2	VITE			XS
80	868875-00	1	PEZZO DI RICAMBIO			XS
81	868866-00	2	ASSE			XS
82	868865-00	2	RUOTA			XS
83	868875-01	1	PEZZO DI RICAMBIO			XS
84	868871-00	1	SCALA			XS
85	760271-01	4	VITE			XS
86	868823-00	1	PIASTRA			XS
87	868863-00	1	ETICHETTA MARCHIO			XS
89	860074-03	4	RONDELLA			XS
90	860083-04	4	DADO			XS
91	868835-00	1	PRIGIONIERO			XS
92	932302-00	4	RONDELLA			XS
93	123219-00	2	GUAINA ISOLANTE			XS
94	123316-01	1	PULEGGIA			XS
95	860079-02	2	ANELLO D'ARRESTO			XS
96	868830-01	1	CATENA			XS
97	868755-00	1	MOLLA			XS
98	860753-00	1	TENDICATENA			XS
99	869468-00	2	LAMA			XS
100	868870-00	1	RUOTA			XS
101	868834-00	1	PRIGIONIERO			XS
102	868833-00	1	PIASTRA			XS
103	941602-00	2	RONDELLA			XS
104	860083-04	2	DADO			XS
105	868838-00	1	CINGHIA			XS
106	868837-00	1	CINGHIA			XS
107	932293-00	1	RONDELLA			XS
108	860155-08	2	CUSCINETTO			XS
109	865526-01	2	ASS. CUNEO			XS
110	949703-10	8	VITE			XS
111	863644-00	4	VITE			XS
112	868892-00	1	ASS.PORTA FRESA			XS
113	860093-15	2	VITE			XS
114	863658-00	4	BLOCCO			XS
115	123232-00	2	MOLLA			XS
116	942043-00	4	VITE			XS
117	860074-03	4	RONDELLA			XS
118	941563-00	4	DADO			XS
119	860226-02	4	RONDELLA			XS
120	868868-00	1	RULLO			XS
121	868869-00	1	RULLO			XS
122	860282-03	2	RUOTA DENTATA			XS
123	868884-00	32	ANTICONTRACCOLPO			XS
124	860073-05	51	RONDELLA			XS
125	868819-00	1	BARRA			XS
126	868818-00	1	BARRA			XS
127	123233-00	2	MOLLA			XS
128	949886-16	2	VITE			XS
129	932285-00	1	RONDELLA			XS
130	949751-07	1	SPANNER 10-13MM			XS
131	943271-00	1	HEX KEY 2.5 MM			XS
132	949882-01	1	WRENCH 4 MM			XS
133	930574-00	1	HEX KEY 5 MM			XS
134	860098-04	1	WRENCH 6 MM			XS
135	860610-01	1	ASTA SPINGENTE			XS
136	863648-00	1	SPESSORE			XS
137	868820-00	1	BARRA GUIDA			XS
138	868828-00	4	RULLO			XS
139	860083-14	4	DADO			XS
140	860085-13	8	VITE			XS
141	868886-00	2	COPERTURA			XS
142	868827-00	2	STAFFA			XS
143	868829-00	2	STAFFA			XS
144	868814-00	4	SUPPORTO			XS
145	860093-14	4	VITE			XS
146	860083-04	12	DADO			XS
147	941602-00	4	RONDELLA			XS
148	868861-00	2	PIASTRA			XS
149	860085-29	4	VITE			XS
150	949876-19	4	RONDELLA			XS
151	N078791	1	REGOLATORE MANICO			XS
152	860092-06	1	DADO			XS
153	860096-07	1	COPPIGLIA			XS
154	N078776	1	ALBERINO			XS
155	860282-02	4	PIGNONE			XS
156	868812-00	3	ALBERINO			XS
157	911392-00	5	ANELLO D'ARRESTO			XS
158	868830-00	1	CATENA			XS
159	868813-00	1	PERNO			XS
160	943023-00	1	VITE			XS
161	868872-00	1	INDICE			XS
162	860074-03	12	RONDELLA			XS
163	868881-00	1	HANDLE			XS
164	865774-00	1	PIGNONE			XS
165	860075-00	1	RONDELLA			XS
166	860083-12	1	NUT M6			XS
167	868825-00	1	TAVOLO			XS
168	860085-27	4	VITE			XS
169	860092-00	1	DADO			XS
170	861475-00	3	CUSCINETTO			XS
171	860286-00	3	RONDELLA			XS
172	932227-00	1	CUSCINETTO			XS
173	868815-00	1	RONDELLA			XS
174	931892-00	3	RONDELLA			XS
175	932302-00	1	RONDELLA			XS
176	949743-02	4	VITE	M8 x 14mm		XS
177	860092-01	3	DADO			XS
178	868880-00	1	SCATOLA INTERRUTTORE			XS
179	868913-00	1	COVERPLATE 3PH	3 Ph - XS		XS
180	868242-06	1	CONTATTO	3Ph - XS		XS
181	868878-01	1	PROTEZIONE SOVRACCAR 3 PHASE	3 Ph - XS		XS
182	860084-21	2	VITE			XS
183	868877-08	1	CABLE 3 PH	XS		XS
185	N380198	1	SWITCHBOX & CABLE 3 PHASE		>492013	XS
185	N075048	1	SWITCHBOX & CABLE 3 PHASE	XS	<492013	XS
186	868802-00	1	ALBERO			XS
187	860155-08	1	CUSCINETTO			XS
188	868425-07	1	ROTORE			XS
189	868541-07	1	STATOR 3 PH	3Ph - XS		XS
190	861721-00	1	CUSCINETTO			XS
191	860080-00	1	ANELLO			XS
192	868801-00	1	COPERTURA			XS
193	860446-02	4	BULLONE			XS
194	861718-00	1	VENTOLA			XS
195	868805-00	1	COPERTURA TERMINALE			XS
204	868387-16	1	MOTOR 3 PH	XS		XS
205	860539-01	1	CHIAVE			XS
206	861068-00	2	RONDELLA			XS
207	868832-00	1	PULEGGIA			XS
208	861983-01	1	RONDELLA			XS
209	860093-15	1	VITE			XS
210	945848-00	1	GRAFFA			XS
211	868831-00	1	ANELLO PREMISTOPPA			XS
212	949876-19	2	RONDELLA			XS
213	860093-07	2	VITE			XS
214	860094-03	5	VITE			XS
215	868879-02	1	CABLE 3 PH	3Ph - XS		XS
216	860637-00	1	SPINA 3 PHASE			XS
217	868879-04	1	CABLE & PLUG 3 PHASE	XS		XS
218	946085-00	1	CONNETTORE			XS
219	933652-00	1	RONDELLA			XS
220	868806-02	1	GUARNIZIONE			XS
221	868922-00	1	ETICHETTA			XS
222	868921-01	1	ETICHETTA			XS
229	868965-01	1	ANELLO DI TENUTA			XS
230	868964-00	1	ANELLO DI TENUTA			XS
304	N078777	1	PIASTRA			XS
305	391358-01	1	PORTAUTENSILE			XS
306	720688-02	1	VITE	3.9x13		XS
310	N078798	1	ADATTATORE			XS
311	N078793	1	COPERTURA & SCIVOLO			XS
312	N078803	2	VITE			XS
313	N080521	1	SOSTEGNO SINISTRO			XS
314	N078797	1	PIASTRA DI BASE			XS
315	N080520	1	SOSTEGNO DESTRO			XS
316	911392-00	2	ANELLO D'ARRESTO			XS
317	949896-12	6	VITE			XS
320	N078801	1	SCATOLA INTERRUTTORE			XS
321	N078802	1	COPERCHIO INTERR.			XS
322	N073708	1	MICROINTERRUTTORE			XS
323	860093-20	2	VITE			XS
324	949896-13	1	VITE			XS
325	N075049	1	ASS. CAVETTO			XS
330	330022-16	1	VITE			XS
817	641845-00	1	ETICHETTA MARCHIO			XS
830	625450-00	1	ETICHETTA			XS
