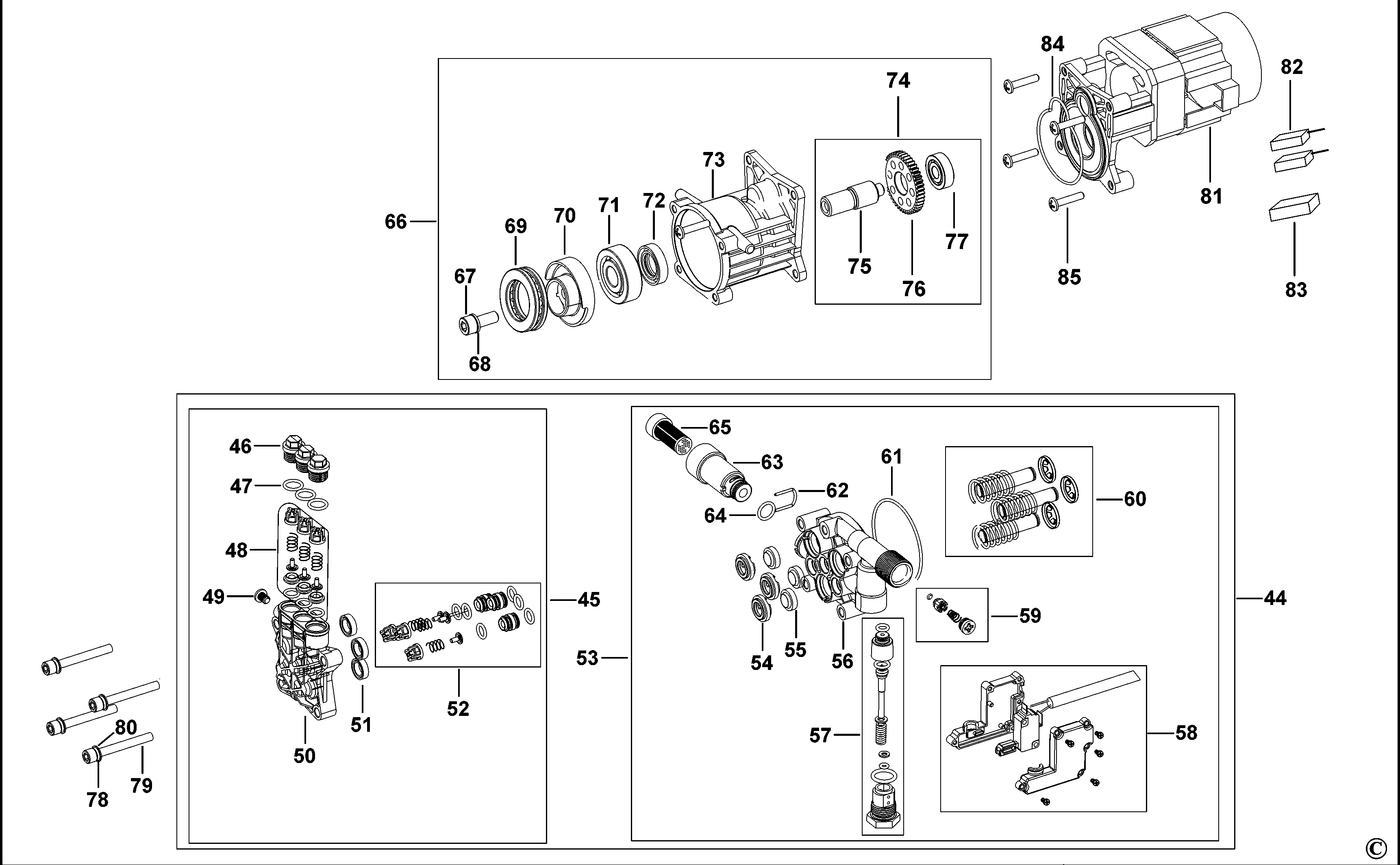

STPW1400 PRESSURE WASHER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 5170002-08 | 1 | HOLDER | HOSE HOLDER | B1 | ||
| 2 | 5170002-09 | 10 | SCREW | 4.8*1.6 | B1 | ||
| 3 | 5170002-10 | 1 | HANDLE | B1 | |||
| 4 | 5170002-11 | 1 | HOLDER | LANCE HOLDER | B1 | ||
| 5 | 5170002-12 | 1 | SWITCHBOX | B1 | |||
| 6 | 5170003-65 | 1 | CORDSET | B1 | |||
| 7 | 5170002-14 | 1 | SWITCH | B1 | |||
| 8 | 1004686-88 | 1 | INDUCTOR | B1 | |||
| 10 | 5170002-16 | 1 | SWITCH SUPPORT | B1 | |||
| 11 | 5170002-17 | 1 | BUTTON | SWITCH BUTTON | B1 | ||
| 12 | 5170002-18 | 6 | SCREW | 2.9*13 | B1 | ||
| 13 | 5170002-19 | 1 | SWITCH COVER | B1 | |||
| 14 | 5170002-20 | 1 | FILTER SA | BACK COVER | B1 | ||
| 15 | 5170002-21 | 2 | PROTECTOR | Water proof | B1 | ||
| 16 | 5170002-22 | 1 | MOTOR COVER | B1 | |||
| 17 | 5170002-23 | 1 | FILTER SA | FRONT COVER | B1 | ||
| 18 | 5170003-66 | 1 | MOTOR SA 230V | B1 | |||
| 19 | 5170002-25 | 1 | BASE | B1 | |||
| 20 | 5170002-26 | 1 | HOSE SA | B1 | |||
| 21 | 1004687-01 | 1 | HOUSING LOWER | B1 | |||
| 22 | 5170002-28 | 1 | SUPPORT | PRESSURE HOSE | B1 | ||
| 23 | 5170002-29 | 1 | CORD PROTECTOR | B1 | |||
| 24 | 5170002-30 | 1 | ADAPTOR | B1 | |||
| 25 | 5170002-47 | 1 | CORD PROTECTOR | B1 | |||
| 26 | 5170002-48 | 1 | ADAPTOR | B1 | |||
| 27 | 5170002-31 | 1 | CONNECTOR | YELLOW | B1 | ||
| 28 | 5170002-32 | 1 | CONNECTOR | GREEN | B1 | ||
| 29 | 5170002-33 | 2 | BASE BRACKET | B1 | |||
| 30 | 5170002-34 | 1 | WHEEL SUPPORT | B1 | |||
| 31 | 5170002-35 | 2 | WHEEL | B1 | |||
| 32 | 5170002-36 | 2 | COVER | WHEEL | B1 | ||
| 33 | 5170002-37 | 1 | CONTAINER | B1 | |||
| 34 | 5170002-38 | 1 | TRIGGER | B1 | |||
| 35 | 5170002-39 | 1 | EXTENSION | Middle | B1 | ||
| 36 | 5170002-40 | 1 | EXTENSION | TURBO | B1 | ||
| 37 | 5170002-41 | 1 | EXTENSION | B1 | |||
| 39 | 5170002-42 | 1 | COVER HOUSING | B1 | |||
| 40 | 5170002-43 | 1 | HOUSING | B1 | |||
| 41 | 5170002-44 | 1 | HOLDER | B1 | |||
| 42 | 5170002-45 | 1 | BLOCK | B1 | |||
| 43 | 1004687-13 | 1 | PIN | B1 | |||
| 44 | 5170003-67 | 1 | PUMP SA | B1 | |||
| 45 | 5170003-68 | 1 | HEAD SA | B1 | |||
| 46 | 5170003-69 | 1 | NUT | B1 | |||
| 47 | 5170003-70 | 1 | O RING | B1 | |||
| 48 | 5170003-71 | 1 | VALVE | B1 | |||
| 49 | 5170003-72 | 1 | SCREW | B1 | |||
| 50 | 5170003-73 | 1 | HEAD | B1 | |||
| 51 | 5170003-74 | 1 | SEAL | B1 | |||
| 52 | 5170003-75 | 1 | VALVE | B1 | |||
| 53 | 5170003-76 | 1 | CYLINDER SA | B1 | |||
| 54 | 5170003-77 | 1 | BRACKET | B1 | |||
| 55 | 5170003-78 | 1 | SEAL | B1 | |||
| 56 | 5170003-79 | 1 | CYLINDER | B1 | |||
| 57 | 5170003-80 | 1 | VALVE | B1 | |||
| 58 | 5170003-81 | 1 | MICRO SWITCH | B1 | |||
| 59 | 5170003-82 | 1 | VALVE | B1 | |||
| 60 | 5170003-83 | 1 | PISTON KIT | B1 | |||
| 61 | 5170003-84 | 1 | O RING | B1 | |||
| 62 | 5170003-85 | 1 | PIN | B1 | |||
| 63 | 5170003-86 | 1 | PIPE | B1 | |||
| 64 | 5170003-87 | 1 | O RING | B1 | |||
| 65 | 5170003-88 | 1 | FILTER | B1 | |||
| 66 | 5170003-89 | 1 | GEARBOX SA | B1 | |||
| 67 | 5170003-90 | 1 | SCREW | B1 | |||
| 68 | 5170003-91 | 1 | WASHER | B1 | |||
| 69 | 5170003-92 | 1 | BEARING | B1 | |||
| 70 | 5170003-93 | 1 | DISC | B1 | |||
| 71 | 5170003-94 | 1 | BEARING | B1 | |||
| 72 | 5170003-95 | 1 | SEAL | B1 | |||
| 73 | 5170003-96 | 1 | GEARBOX | B1 | |||
| 74 | 5170003-97 | 1 | GEARSHAFT SA | B1 | |||
| 75 | 5170003-98 | 1 | GEARSHAFT | B1 | |||
| 76 | 5170003-99 | 1 | GEAR | B1 | |||
| 77 | 5170004-00 | 1 | BEARING | B1 | |||
| 78 | 5170004-01 | 4 | WASHER SPRING | B1 | |||
| 79 | 5170004-02 | 4 | SCREW | B1 | |||
| 80 | 5170004-03 | 4 | WASHER | B1 | |||
| 81 | 5170004-04 | 1 | MOTOR | B1 | |||
| 82 | 5170004-05 | 1 | BRUSH PAIR | B1 | |||
| 83 | 5170004-06 | 1 | BRUSH HOLDER | B1 | |||
| 84 | 5170004-07 | 1 | RING | B1 | |||
| 85 | 5170004-08 | 1 | SCREW | B1 |
