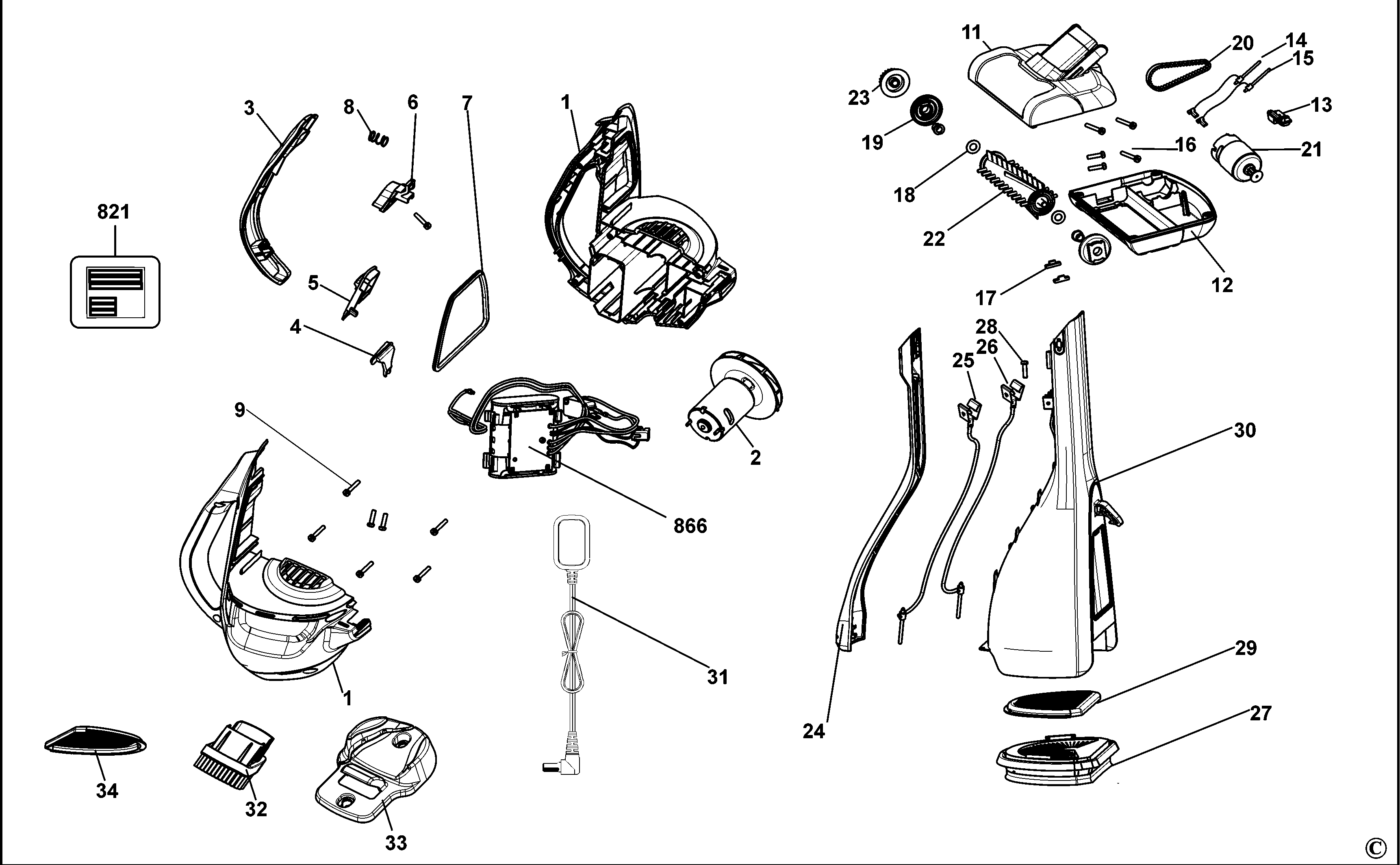

DVA325JP07 VACUUM CLEANER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N508967 | 1 | HOUSING SA | TW | |||
| 2 | N509340 | 1 | MOTOR SA | TW | |||
| 3 | 90642102 | 1 | HANDLE COVER | TW | |||
| 4 | 90640170 | 1 | LENS | TW | |||
| 5 | 90640159 | 1 | SLIDER | TW | |||
| 6 | 90640160 | 1 | BUTTON | TW | |||
| 7 | 90641680 | 1 | SEAL | TW | |||
| 8 | 90529369 | 1 | SPRING | TW | |||
| 9 | 499903-00 | 7 | SCREW | TW | |||
| 11 | N509325 | 1 | HOUSING UPPER | TW | |||
| 12 | 90642086 | 1 | HOUSING LOWER | TW | |||
| 13 | 90642087 | 1 | CONTACT | TW | |||
| 14 | 90558209 | 1 | WIRE | TW | |||
| 15 | 90558210 | 1 | WIRE | TW | |||
| 16 | 143062-02 | 5 | SCREW | TW | |||
| 17 | 5100556-00 | 2 | WASHER | TW | |||
| 18 | 5100571-00 | 2 | SPACER | TW | |||
| 19 | N924942 | 1 | ROLLER | TW | |||
| 20 | 90534064 | 1 | BELT | TW | |||
| 21 | N509326 | 1 | MOTOR SA | TW | |||
| 22 | N645874 | 1 | BAR SA | TW | |||
| 23 | N578488 | 1 | GEAR | TW | |||
| 24 | 90642097 | 1 | COVER | TW | |||
| 25 | N504779 | 1 | WIRE | TW | |||
| 26 | N504780 | 1 | WIRE | TW | |||
| 27 | N600601 | 1 | FILTER | TW | |||
| 28 | 143062-02 | 1 | SCREW | TW | |||
| 29 | 90640311 | 1 | PRE-FILTER | TW | |||
| 30 | N586487 | 1 | BOWL | TW | |||
| 31 | N507218 | 1 | CHARGER | TW | |||
| 32 | 90627690 | 1 | BRUSH | TW | |||
| 33 | N497722 | 1 | BRACKET | TW | |||
| 34 | N520862 | 1 | PRE-FILTER | TW | |||
| 821 | N604059 | 1 | RATING LABEL | TW | |||
| 866 | N509174 | 1 | BATTERY PACK | TW |
