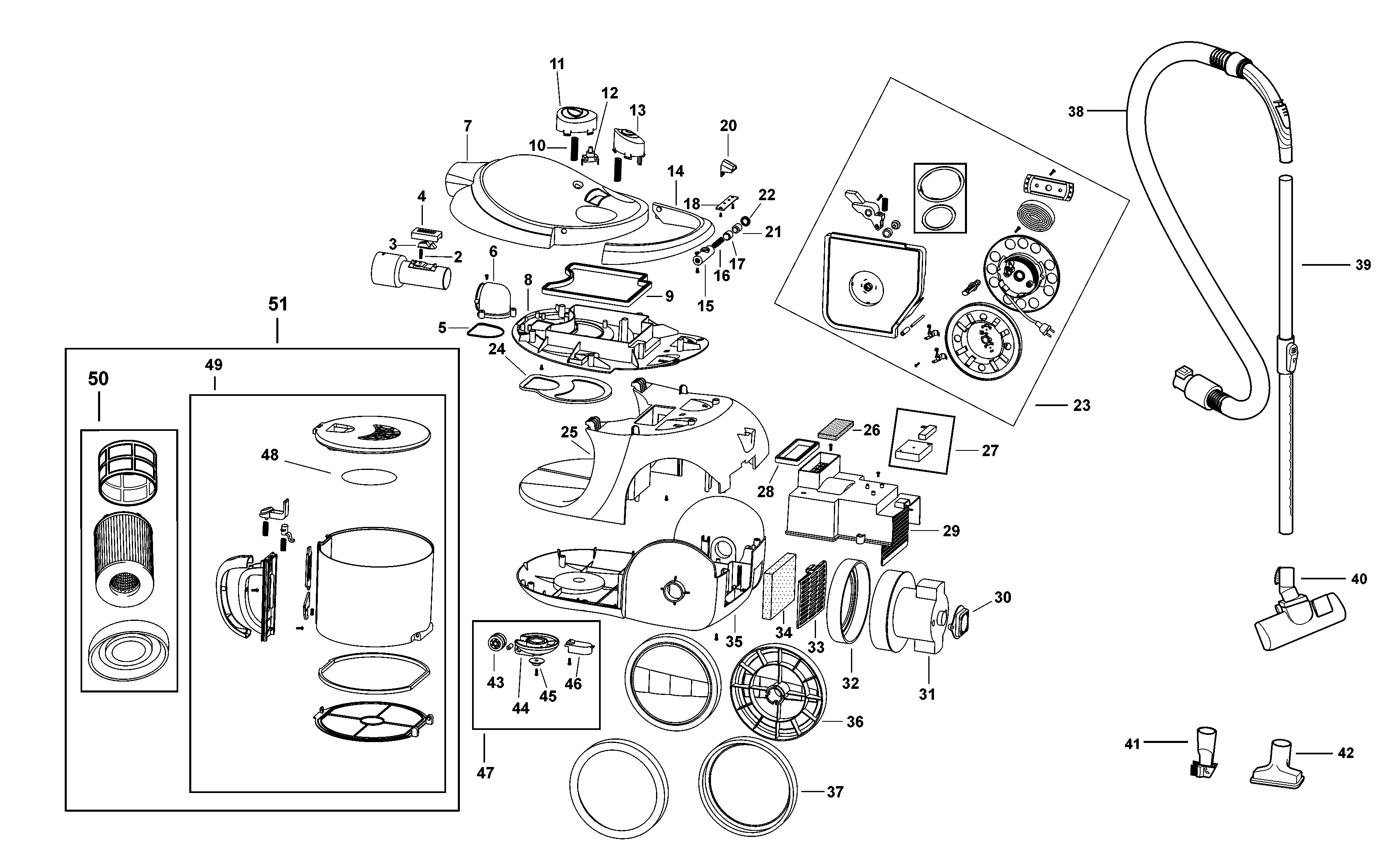

VM2040 VACUUM CLEANER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 2 | 5170020-60 | 1 | SPRING | B5 |  |
||
| 3 | 5170020-61 | 1 | LOCK | B5 | |
||
| 4 | 5170020-62 | 1 | COVER | B5 | |
||
| 5 | 5170020-63 | 1 | SEAL | B5 | |
||
| 6 | 5170020-64 | 1 | BASE | B5 | |
||
| 7 | 5170020-65 | 1 | COVER-TOP | B5 | |
||
| 8 | 5170020-66 | 1 | COVER & SEAL | B5 | |
||
| 9 | 5170020-67 | 1 | SEAL | B5 | |
||
| 10 | 5170020-68 | 2 | SPRING | B5 | |
||
| 11 | 5170020-69 | 1 | BUTTON | B5 | |
||
| 12 | 5170020-70 | 1 | SWITCH | B5 | |
||
| 13 | 5170020-71 | 1 | BUTTON | B5 | |
||
| 14 | 5170020-72 | 1 | HANDLE | B5 | |
||
| 15 | 5170020-73 | 1 | PIPE | B5 | |
||
| 16 | 5170020-74 | 1 | SPRING | B5 | |
||
| 17 | 5170020-75 | 1 | INDICATOR | B5 | |
||
| 18 | 5170020-76 | 1 | HOLDER | B5 | |
||
| 20 | 5170020-77 | 1 | BUTTON | B5 | |
||
| 21 | 5170020-78 | 1 | INDICATOR | B5 | |
||
| 22 | 5170020-79 | 1 | COVER | B5 | |
||
| 23 | 6010403-34 | 1 | CORD PULL | B5 | |||
| 24 | 5170021-26 | 1 | SEAL | B5 | |
||
| 25 | 5170021-24 | 1 | COVER | Middle cover | B5 | |
|
| 26 | 5170020-95 | 1 | FILTER | B5 | |
||
| 27 | 5170020-96 | 1 | PCB SA | B5 |  |
||
| 28 | 5170020-97 | 1 | SEAL | B5 | |
||
| 29 | 5170020-98 | 1 | MOTOR COVER | B5 | |
||
| 30 | 5170021-00 | 1 | RING | B5 | |
||
| 31 | 5170021-01 | 1 | MOTOR | B5 | |
||
| 32 | 5170021-02 | 1 | RING | B5 | |
||
| 33 | 5170021-03 | 1 | GRILL | B5 | |
||
| 34 | 1004488-04 | 1 | EXHAUST | B5 | |
||
| 35 | 5170020-99 | 1 | BASE | B5 | |
||
| 36 | 5170021-05 | 2 | WHEEL | B5 | |
||
| 37 | 5170021-06 | 2 | WHEEL FRICTION | B5 | |
||
| 38 | 1004488-02 | 1 | HOSE SA | B5 | |
||
| 39 | 1004488-07 | 1 | TUBE SA | B5 | |
||
| 40 | 1004488-05 | 1 | TOOL FLOOR | B5 | |
||
| 41 | 1004488-03 | 1 | TOOL BRUSH | B5 | |
||
| 42 | 1004488-09 | 1 | TOOL FURNITURE | B5 | |
||
| 43 | 5170021-12 | 1 | WHEEL | Small wheel | B5 | |
|
| 44 | 5170021-10 | 1 | BASE | B5 | |
||
| 45 | 5170021-08 | 1 | WHEEL FIXED | B5 | |
||
| 46 | 5170021-09 | 1 | HOLDER | Floor brush holder | B5 | |
|
| 47 | 1004755-60 | 1 | WHEEL SA | B5 | |||
| 48 | 1004755-62 | 1 | FILTER | B5 | |||
| 49 | 1004755-61 | 1 | BOWL | B5 | |||
| 50 | 1004488-01 | 1 | FILTER SA | B5 | |
||
| 51 | 1004755-59 | 1 | BOWL | SA | B5 |
